Descripción

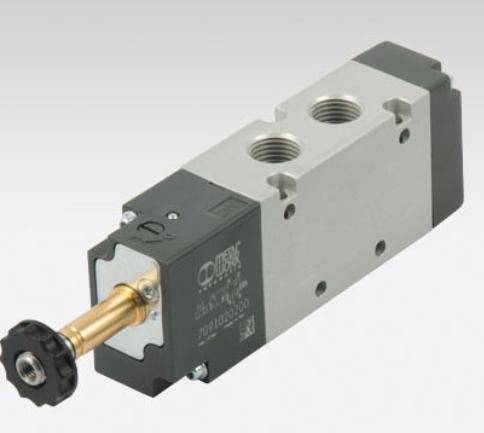

BASIC series valve electro-pneumatic couplings 1/8» 5/2 monostable with mechanical spring
| EAN code: | 8056686189852 |
| Short description: | BASIC ELPN 1/8» 5/2 MONO |
| Quantity per package: | 0 |
| Minimum order quantity: | 0 |
| Unit of measure: | items |
| Valves – | |
| Flow-rate | 550.00 l/min |
| Flow-rate at 6.3 bar DP 1 bar (Nl/min) | 550 |
| Functional denomination | valves |
| Max input pressure N | 10.00 bar |
| Max temperature (°C) | 60 |
| Min Input Pressur | 2.50 bar |
| Min temperature (°C) | -10 |
| Product’s series | Valve BASIC series |
| Protection degree | IP 65 |
| Push-in fitting for pipe (Ø) | 1/8″ |
| Thread type | Cylindrical gas |
| Type | Electro-pneumatic |
| Voltage | 12VDC – 24VDC – 24VAC – 110VAC – 220VAC |
| Way scheme | 5/2 |
