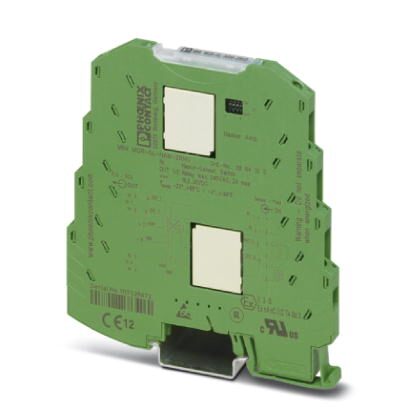

Descripción
Ambient conditions
| Ambient temperature (operation) |
-20 °C … 65 °C |
| Ambient temperature (storage/transport) |
-40 °C … 85 °C |
| Maximum altitude |
≤ 2000 m |
| Permissible humidity (operation) |
5 % … 95 % (non-condensing) |
| Degree of protection |
IP20 |
| Noise immunity |
EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
Back to top
Power supply
| Designation |
Supply |
| Nominal supply voltage |
24 V DC |
| Supply voltage range |
19.2 V DC … 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715)) |
| Max. current consumption |
< 25 mA |
| Power consumption |
< 600 mW |
Back to top
Connection data
| Connection method |
Screw connection |
| Stripping length |
12 mm |
| Screw thread |
M3 |
| Conductor cross section solid |
0.2 mm² … 2.5 mm² |
| Conductor cross section flexible |
0.2 mm² … 2.5 mm² |
| Conductor cross section AWG |
26 … 12 |
Back to top
General
| No. of channels |
1 |
| Status display |
Red LED (error messages) |
|
Yellow LED (relay status messages) |
| Electrical isolation |
Reinforced insulation according to EN 61010-1 |
| Overvoltage category |
II |
| Degree of pollution |
2 |
| Rated insulation voltage |
150 V AC (Input/relay outputs (reinforced insulation)) |
| Test voltage, input/output/supply |
1.5 kV (50 Hz, 1 min.) |
| Electromagnetic compatibility |
Conformance with EMC directive |
| Noise emission |
EN 61000-6-4 |
| Noise immunity |
EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| Color |
green |
| Housing material |
PBT |
| Mounting position |
any |
| Conformance |
CE-compliant |
| ATEX |
II 3 G Ex nA nC IIC T4 Gc X |
| UL, USA/Canada |
UL 508 Recognized |
|
Class I, Div. 2, Groups A, B, C, D T4 |
| Certificate of classification |
DNV GL TAA00000N1 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 – HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 – HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 – HL 2 |
