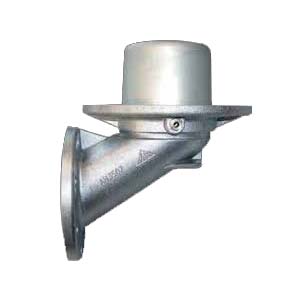

VALVULA DE FONDO ACTUADOR NEUMATICO ALFONS HAAR PBV 100 115 A 90 S 2132646

Descripción

PNEUMATIC ACTUATET BOTTOM VALVES ALFONS HAAR PBV 100 115 90 S

2132646Pneumatic operated bottom valve
Nominal width: 100 mm
Construction height: 115 mm
90° elbow valve
Pressure balanced acc. to EN13316
Operating temperature range: -20 °C to +50 °C
Without supplementary equipment
Housing material: Aluminium
Seal: Viton
Nominal Pressure: 10 bar
Tank connection flange: DN 100, TW 220
Pipe connection flange: DN 100, TW3
Min. pneum. pressure for opening: 3,5 bar
Hydr. pressure for opening: 13,6 – 15,5 bar
Usable as a shut off valve for bottom loading or overfill prevention.
In conjunction with a pneumatic level sensor the control line should have a minimum length of 4.5 m.

ALFONS HAAR BOTTOM VALVES PBV 100 115_65_25 DATASHEET
